helm部署kube-prometheus-stack

#prometheus

环境

三节点master，三节点node

# kubectl get nodes -owide
NAME      STATUS   ROLES           AGE     VERSION   INTERNAL-IP       EXTERNAL-IP   OS-IMAGE                      KERNEL-VERSION                 CONTAINER-RUNTIME
master1   Ready    control-plane   2d19h   v1.29.8   192.168.248.101   <none>        Rocky Linux 9.2 (Blue Onyx)   5.14.0-284.11.1.el9_2.x86_64   containerd://1.7.13
master2   Ready    control-plane   2d19h   v1.29.8   192.168.248.102   <none>        Rocky Linux 9.2 (Blue Onyx)   5.14.0-284.11.1.el9_2.x86_64   containerd://1.7.13
master3   Ready    control-plane   2d19h   v1.29.8   192.168.248.103   <none>        Rocky Linux 9.2 (Blue Onyx)   5.14.0-284.11.1.el9_2.x86_64   containerd://1.7.13
worker1   Ready    worker          2d19h   v1.29.8   192.168.248.111   <none>        Rocky Linux 9.2 (Blue Onyx)   5.14.0-284.30.1.el9_2.x86_64   containerd://1.7.13
worker2   Ready    worker          2d19h   v1.29.8   192.168.248.112   <none>        Rocky Linux 9.2 (Blue Onyx)   5.14.0-284.30.1.el9_2.x86_64   containerd://1.7.13
worker3   Ready    worker          2d19h   v1.29.8   192.168.248.113   <none>        Rocky Linux 9.2 (Blue Onyx)   5.14.0-284.30.1.el9_2.x86_64   containerd://1.7.13

1、配置镜像加速、或替换国内镜像或科学上网

2、部署metallb+traefik

3、部署nfsserver，storageclass （nfs-client）提供数据持久化，并且设置默认

# kubectl get sc
NAME                   PROVISIONER                                                RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
nfs-client (default)   cluster.local/nfs-client-nfs-subdir-external-provisioner   Delete          Immediate           true                   45d

helm添加prometheus-community仓库

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
#拉取到本地
helm pull prometheus-community/kube-prometheus-stack
tar xzvf kube-prometheus-stack-65.5.0.tgz
cd kube-prometheus-stack

alertmanager下配置钉钉警告（自行查找钉钉端配置）

  config:
    global:
      resolve_timeout: 5m
    route:
      group_by: ['alertname']
      group_wait: 30s
      group_interval: 5m
      repeat_interval: 12h
      receiver: 'webhook'
    receivers:
    - name: 'webhook'
      webhook_configs:
      - url: 'http://webhook-dingtalk:8060/dingtalk/webhook/send'
        send_resolved: true
    templates:
    - '/etc/alertmanager/config/*.tmpl'

配置alertmanager、prometheus数据卷存储持久化

编辑values.yaml 762-769行和3836-3842行

vim values.yaml
……
    storage:
      volumeClaimTemplate:
        spec:
          storageClassName: nfs-client
          accessModes: ["ReadWriteOnce"]
          resources:
            requests:
              storage: 50Gi
……
      volumeClaimTemplate:
        spec:
          storageClassName: nfs-client
          accessModes: ["ReadWriteOnce"]
          resources:
            requests:
              storage: 50Gi
……

配置grafana数据卷存储持久化

vim charts/grafana/values.yaml
persistence:
  type: pvc
  enabled: true
  storageClassName: nfs-client
  accessModes:
    - ReadWriteOnce
  size: 10Gi

安装

helm install kube-prometheus-stack -n monitoring --create-namespace \
  --set prometheus.ingress.enabled=true \
  --set prometheus.prometheusSpec.retention=7d \
  --set prometheus.ingress.hosts='{prometheus.haiwang.local}' \
  --set prometheus.ingress.paths='{/}' \
  --set prometheus.ingress.pathType=Prefix \
  --set alertmanager.ingress.enabled=true \
  --set alertmanager.ingress.hosts='{alertmanager.haiwang.local}' \
  --set alertmanager.ingress.paths='{/}' \
  --set alertmanager.ingress.pathType=Prefix \
  --set grafana.ingress.enabled=true \
  --set grafana.adminPassword=baidu.com \
  --set grafana.ingress.hosts='{grafana.haiwang.local}' \
  --set grafana.ingress.paths='{/}' \
  --set grafana.ingress.pathType=Prefix . -f values.yaml

如果有多个ingress控制器，指定特定的控制器使用

--set grafana.ingress.ingressClassName=traefik \

--set alertmanager.ingress.ingressClassName=traefik \

--set prometheus.ingress.ingressClassName=traefik \

查看pod状态

# kubectl -n monitoring get pod
NAME                                                        READY   STATUS    RESTARTS   AGE
alertmanager-kube-prometheus-stack-alertmanager-0           2/2     Running   0          7m37s
grafana-c6475587c-57j2z                                     1/1     Running   0          23h
kube-prometheus-stack-grafana-65c97dc47-qpsq5               3/3     Running   0          8m14s
kube-prometheus-stack-kube-state-metrics-86b64f5db8-lzbzn   1/1     Running   0          8m14s
kube-prometheus-stack-operator-78fb9f4668-ztf6m             1/1     Running   0          8m14s
kube-prometheus-stack-prometheus-node-exporter-65jwk        1/1     Running   0          8m14s
kube-prometheus-stack-prometheus-node-exporter-6m7r5        1/1     Running   0          8m14s
kube-prometheus-stack-prometheus-node-exporter-dwx77        1/1     Running   0          8m14s
kube-prometheus-stack-prometheus-node-exporter-fffmh        1/1     Running   0          8m14s
kube-prometheus-stack-prometheus-node-exporter-klx4l        1/1     Running   0          8m14s
kube-prometheus-stack-prometheus-node-exporter-wqntg        1/1     Running   0          8m14s
prometheus-kube-prometheus-stack-prometheus-0               2/2     Running   0          7m37s

查看svc

# kubectl get svc -n monitoring
NAME                                             TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                      AGE
alertmanager-operated                            ClusterIP   None             <none>        9093/TCP,9094/TCP,9094/UDP   7m58s
grafana                                          ClusterIP   10.102.67.115    <none>        3000/TCP                     23h
kube-prometheus-stack-alertmanager               ClusterIP   10.100.129.125   <none>        9093/TCP,8080/TCP            8m35s
kube-prometheus-stack-grafana                    ClusterIP   10.105.104.4     <none>        80/TCP                       8m35s
kube-prometheus-stack-kube-state-metrics         ClusterIP   10.102.107.229   <none>        8080/TCP                     8m35s
kube-prometheus-stack-operator                   ClusterIP   10.103.188.188   <none>        443/TCP                      8m35s
kube-prometheus-stack-prometheus                 ClusterIP   10.101.98.65     <none>        9090/TCP,8080/TCP            8m35s
kube-prometheus-stack-prometheus-node-exporter   ClusterIP   10.109.11.221    <none>        9100/TCP                     8m35s
prometheus-operated                              ClusterIP   None             <none>        9090/TCP                     7m58s

查看ingress的svc地址的外部IP

# kubectl get svc -n traefik-ingress traefik
NAME      TYPE           CLUSTER-IP      EXTERNAL-IP     PORT(S)                                     AGE
traefik   LoadBalancer   10.110.60.189   172.20.248.20   9000:31465/TCP,80:32348/TCP,443:30948/TCP   40h

如果没有在安装的时候指定密码或者忘记密码，获取grafana密码

# kubectl get secrets  -n monitoring kube-prometheus-stack-grafana -o jsonpath="{.data.admin-password}" | base64 --decode ; echo
baidu.com

查看ingress

# kubectl get ingress -n monitoring
NAME                                 CLASS     HOSTS                        ADDRESS   PORTS   AGE
grafana                              traefik   csgrafana.haiwang.com                  80      23h
kube-prometheus-stack-alertmanager   traefik   alertmanager.haiwang.local             80      10m
kube-prometheus-stack-grafana        traefik   grafana.haiwang.local                  80      10m
kube-prometheus-stack-prometheus     traefik   prometheus.haiwang.local               80      10m
# kubectl get pv,pvc -n monitoring
NAME                                                        CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                                                                                                             STORAGECLASS   VOLUMEATTRIBUTESCLASS   REASON   AGE
persistentvolume/pvc-03736a1c-8523-4234-ac18-d05ffc777367   10Gi       RWO            Delete           Bound    monitoring/kube-prometheus-stack-grafana                                                                          nfs-client     <unset>                          10m
persistentvolume/pvc-248949ce-c72d-469f-9e49-4367d4483788   50Gi       RWO            Delete           Bound    monitoring/alertmanager-kube-prometheus-stack-alertmanager-db-alertmanager-kube-prometheus-stack-alertmanager-0   nfs-client     <unset>                          10m
persistentvolume/pvc-71a674f5-4ca5-4a67-a587-9100776ebaee   50Gi       RWO            Delete           Bound    monitoring/prometheus-kube-prometheus-stack-prometheus-db-prometheus-kube-prometheus-stack-prometheus-0           nfs-client     <unset>                          10m
persistentvolume/pvc-7b281702-dcb0-4cda-bd07-9c4cc0dd60fe   10Gi       RWO            Delete           Bound    monitoring/grafana                                                                                                nfs-client     <unset>                          23h

NAME                                                                                                                         STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
persistentvolumeclaim/alertmanager-kube-prometheus-stack-alertmanager-db-alertmanager-kube-prometheus-stack-alertmanager-0   Bound    pvc-248949ce-c72d-469f-9e49-4367d4483788   50Gi       RWO            nfs-client     <unset>                 10m
persistentvolumeclaim/grafana                                                                                                Bound    pvc-7b281702-dcb0-4cda-bd07-9c4cc0dd60fe   10Gi       RWO            nfs-client     <unset>                 23h
persistentvolumeclaim/kube-prometheus-stack-grafana                                                                          Bound    pvc-03736a1c-8523-4234-ac18-d05ffc777367   10Gi       RWO            nfs-client     <unset>                 10m
persistentvolumeclaim/prometheus-kube-prometheus-stack-prometheus-db-prometheus-kube-prometheus-stack-prometheus-0           Bound    pvc-71a674f5-4ca5-4a67-a587-9100776ebaee   50Gi       RWO            nfs-client     <unset>                 10m

在本地hosts文件加入解析

172.20.248.20 prometheus.haiwang.local alertmanager.haiwang.local grafana.haiwang.local

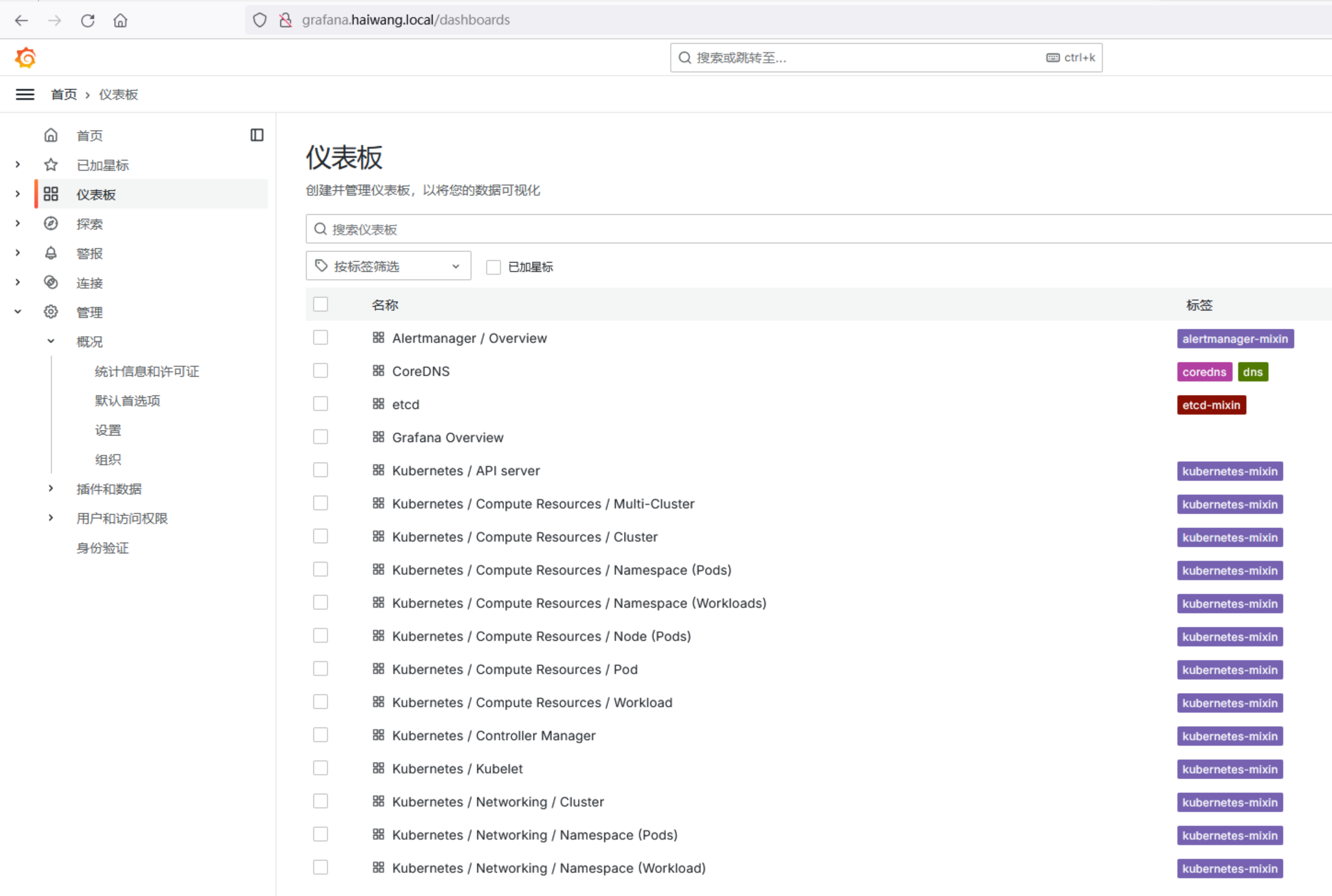

打开浏览器，自带了很多dashboard

http://grafana.haiwang.local/dashboards

输入账号密码

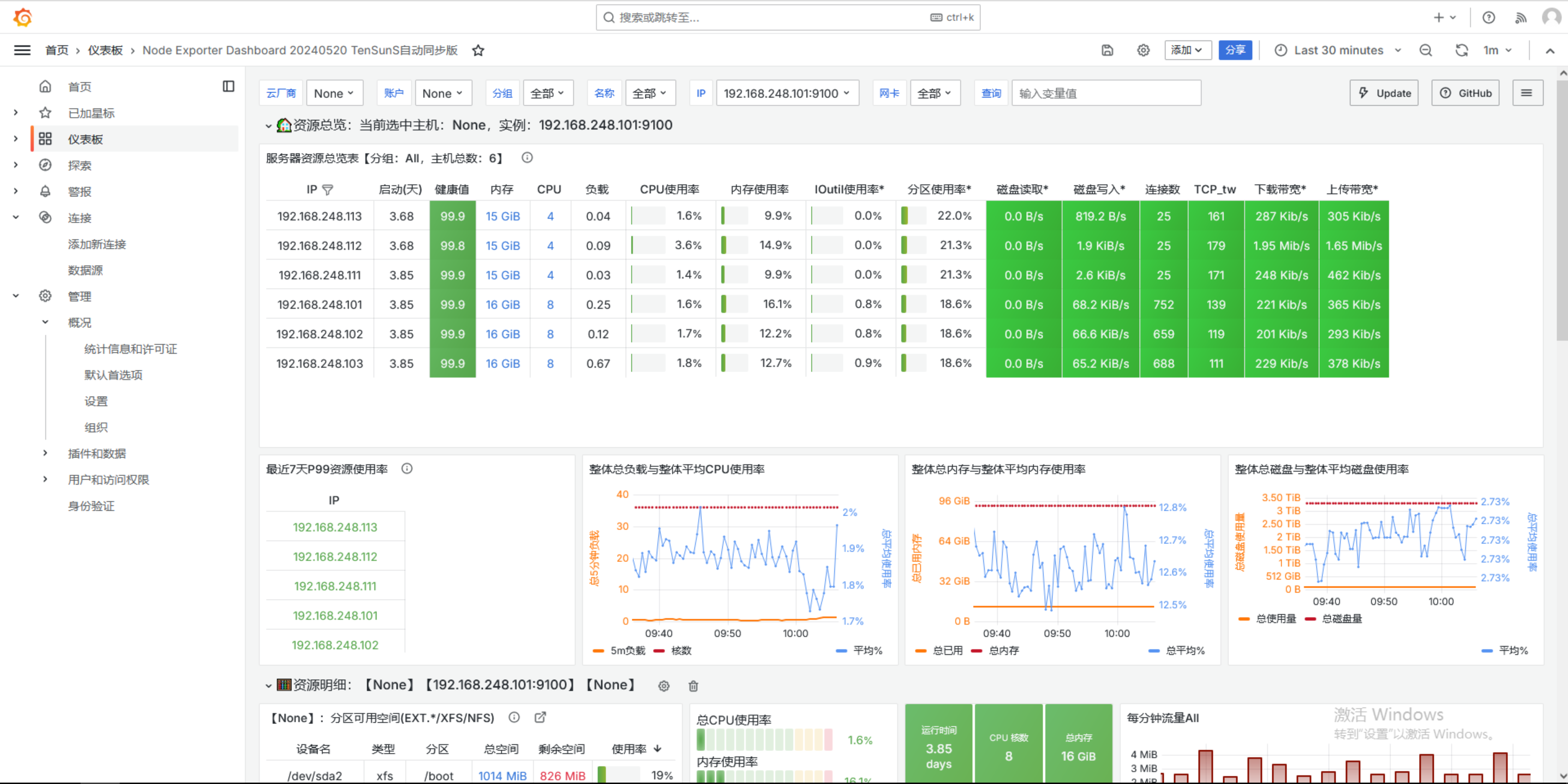

再导入一个dashboard：8919

展示下
